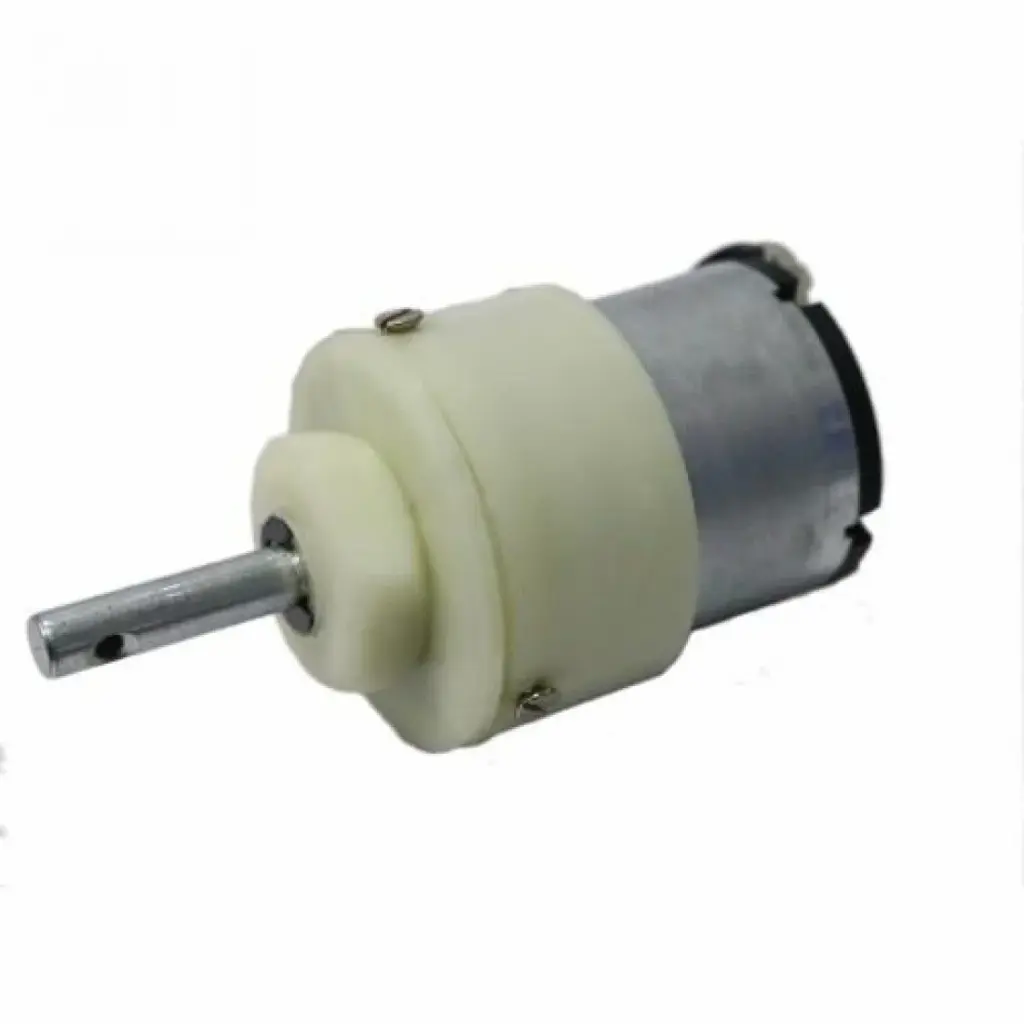

150 RPM – 12V Centre Shaft DC Geared Motor
This text describes a simple DC motor with a gearbox, which is suitable for all-terrain robots and other robotic projects. The motor has a 12V power supply and a speed of 150 RPM. The shaft of the motor has a 3 mm hole with threads in the center, which makes it easy to attach to wheels or other mechanical parts.
These motors have a standard size and are affordable and easy to control with an Arduino or a compatible board. You can use the L298N H-bridge module with a built-in voltage regulator to drive this motor, which can operate between 5 and 35V DC. Alternatively, you can select from a variety of precise motor driver modules in our Motor drivers category, depending on your specific requirements.
The shaft of the motor also has a nut and threads for connection, and a hole with internal threads to fix it to the wheel. The metal gearbox of the motor is sturdy and designed for heavy-duty applications. It comes in different RPMs and is ideal for robotics and industrial applications.
Features
- RPM: 150.
- Operating Voltage: 12V DC
- Gearbox: Attached Plastic (spur)Gearbox
- Shaft diameter: 6mm with internal hole.
- Torque: 2 kg-cm
- No-load current = 60 mA (Max)
- Load current = 300 mA (Max).
Package Includes
- 1 x 150 RPM – 12V Centre Shaft DC Geared Motor
